MP01
Our multifunctional machine was born from the synthesis of the experiences gained in various fields, with the mission of creating machines with a high technological content and extremely customizable that can be the ideal support for professionals in the construction, agricultural and aviation maintenance worlds.The driving factor is the extreme simplicity of replacing the equipment, passing from one process to another in just 5 minutes and making it possible to condense all the necessary machines into a single vehicle.
Another added value is undoubtedly the strength of our staff, extremely flexible and always ready to accept new challenges in creating innovative and customized equipment to automate the most demanding processes.
Compact
Powerful
Ready for any need
Ultra Comfort Design
Compact Construction Machines

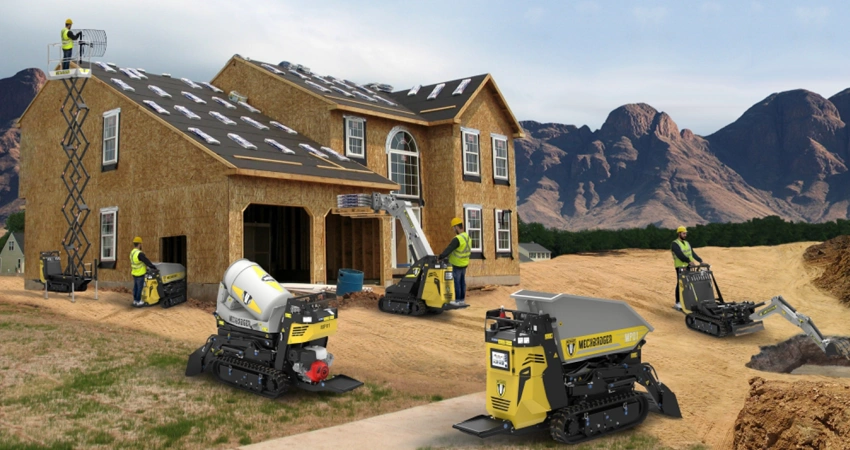

ZERO Emission Vehicles
Having the vision of being able to live in an increasingly less contaminated world, we thought we could give our small contribution by creating the ZERO emissions version, ideal for being able to operate in organic farming environments or inside homes, without leaving the slightest sign of olfactory and hearing pollution.

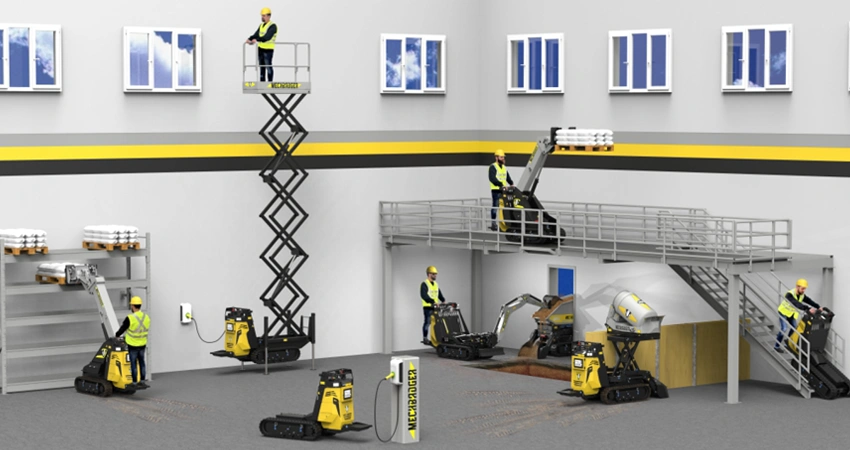

Customizable Gear
The range of equipment is always evolving, as our machine can support the installation of any type of equipment having the possibility of inserting an increased oil flow and their extreme ease and interchangeability through the use of hydraulic and mechanical quick couplings is another indisputable added value.

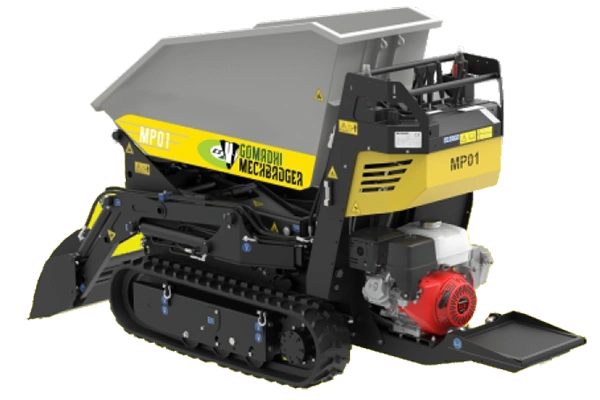

Dumper
Machine designed for construction and agriculture, it is equipped with hydraulic quick couplings and a PATENTED quick system for replacing the equipment. It is available in Electric and Petrol versions, with an optional front loader arm.
Petrol Vehicles
Technical Specifications
| Engine | Honda GX390 11.7HP |
| RPM | 3600 |
| Starting | Tear-Off Manual |
| Travel Motor | 20 L/min |
| Gradeability | 70% (35°) |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 743 Kg (499+244) |
| Load Capacity | 800 Kg |
| Volume of Cargo | 0.32 m3 |
| SAE Cargo Volume | 0.41 m3 |
| Speed | 4.5 Km/h |
Technical Specifications
| Motor | 7KW - 2600 rpm |
| Maximum Current | 175 A |
| Voltage | 48 VDC |
| Battery | 150 Ah |
| Gradeability | 70% (35°) |
| Travel Motors | 20 L/min |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 858 Kg (614+244) |
| Load Capacity | 800 Kg |
| Volume of Cargo | 0.32 m3 |
| SAE Cargo Volume | 0.41 m3 |
| Speed | 4.5 Km/h |
Electric Vehicles

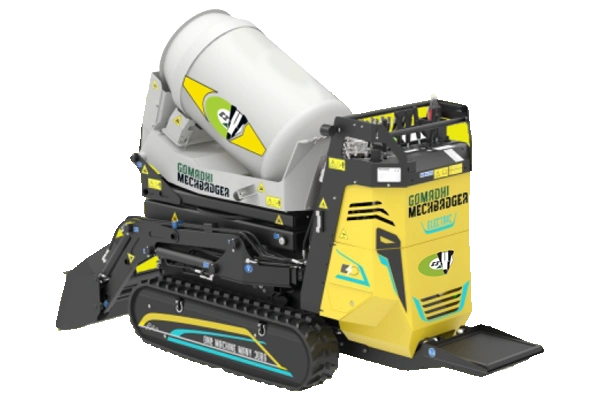

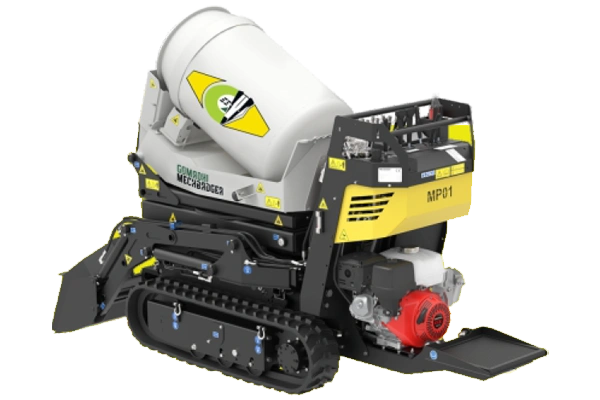

Mixer
Petrol Vehicles
Technical Specifications
| Engine | Honda GX390 11.7HP |
| RPM | 3600 |
| Starting | Tear-Off Manual |
| Travel Motor | 20 L/min |
| Gradeability | 70% (35°) |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 841 Kg (499+342) |
| Volume | 220 L |
| SAE Volume | 120 L |
| Speed | 4.5 Km/h |
Technical Specifications
| Motor | 7KW - 2600 rpm |
| Maximum Current | 175 A |
| Voltage | 48 VDC |
| Battery | 150 Ah |
| Gradeability | 70% (35°) |
| Travel Motors | 20 L/min |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 956 Kg (614+342) |
| Volume | 220 L |
| SAE Volume | 120 L |
| Speed | 3.5 Km/h |
Electric Vehicles

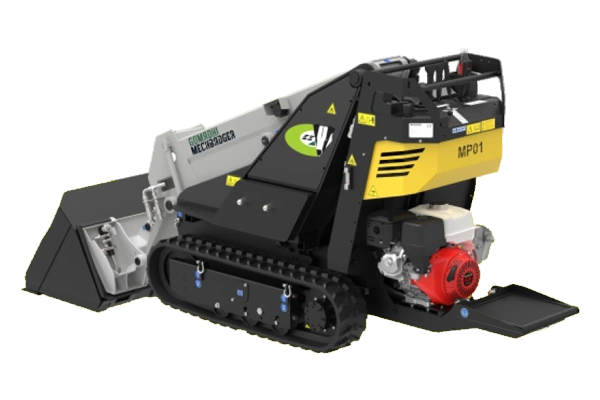

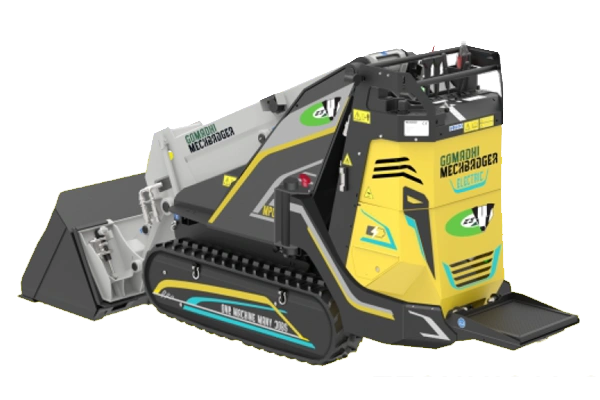

Loader
The MECHBADGER loader can be used on any surface with extreme precision thanks to its compact size and ergonomic controls. It gives its best when spaces are tight thanks to its agility and precision. Entirely designed and developed in ITALY, it represent s the ELECTRIC multifunction machine par excellence
Petrol Vehicles
Technical Specifications
| Engine | Honda GX390 11.7HP |
| RPM | 3600 |
| Starting | Tear-Off Manual |
| Travel Motor | 20 L/min |
| Gradeability | 70% (35°) |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 1218 Kg (499+719) |
| Pay Load | 400 kg |
| Discharge Height | 2200 mm |
| Speed | 4.5 Km/h |
Technical Specifications
| Motor | 7KW - 2600 rpm |
| Maximum Current | 175 A |
| Voltage | 48 VDC |
| Battery | 150 Ah |
| Gradeability | 70% (35°) |
| Travel Motors | 20 L/min |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 1333 Kg (614+719) |
| Payload Capacity | 400 Kg |
| Discharge Height | 2200 mm |
| Speed | 3.5 Km/h |
Electric Vehicles
Features
- Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
- Interchangeability by configuring the Power Unit with a single attachment, you can purchase the attachments listed below at any time, which are quickly interchangeable in less than 4 minutes, you can use several complete machines with a single Power Unit.
- Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors. Steering by rotating the tracks.
- Precious time can be saved during maintenance, resulting in cost savings, the electric motor does not need maintenance.
- Hydraulically activated, pilot controlled forward and reverse lever for precision operation.
- The hydraulically activated traction system and working hydraulics can be activated independently.
- Reduction of maintenance and service costs thanks to the low-wear drive system.
- Optimal service access to safely perform daily checkup procedures.
- Quick access to maintenance points.
- Tracked under carriage with hydrostatic transmission.
- Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
- 100% ELECTRIC engine, air cooling; automatic key start.
- Cushioned and ergonomic operator platform
Interchangeability
By configuring the Power Unit with a single attachment, you can purchase the attachments listed below at any time, which are quickly interchangeable in less than 4 minutes, you can use several complete machines with a single Power Unit.
Front Accessories
Forks
Bucket
LAMA
Hammer
Auger
Sweeper

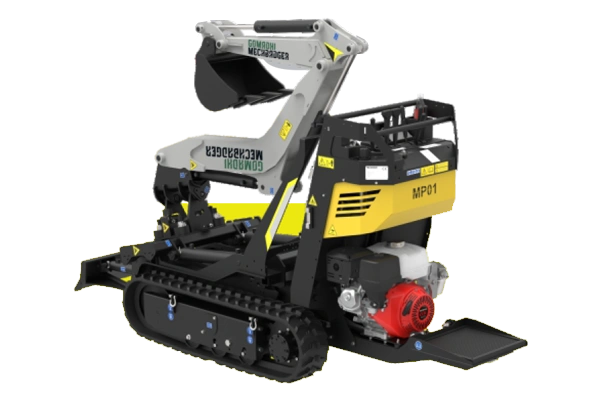

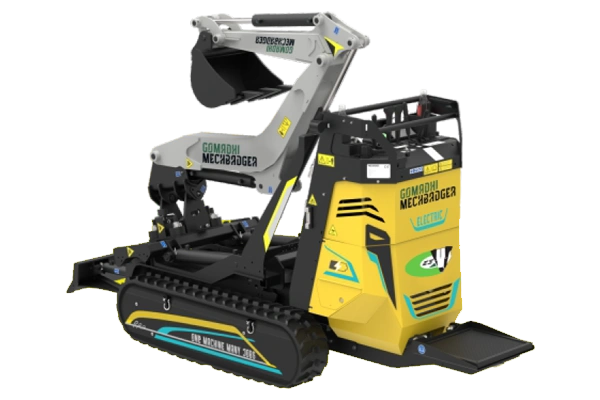

Excavator
Petrol Vehicles
Technical Specifications
| Engine | Honda GX390 11.7HP |
| RPM | 3600 |
| Starting | Tear-Off Manual |
| Travel Motor | 20 L/min |
| Gradeability | 70% (35°) |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 790 Kg (499+291) |
| Digging Depth | 1850 mm |
| SAE plan | 1590 mm |
| Speed | 4.5 Km/h |
Technical Specifications
| Motor | 7KW - 2600 rpm |
| Maximum Current | 175 A |
| Voltage | 48 VDC |
| Battery | 150 Ah |
| Gradeability | 70% (35°) |
| Travel Motors | 20 L/min |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 905 Kg (614+291) |
| Digging Depth | 1850 mm |
| SAE plan | 1590 mm |
| Speed | 3.5 Km/h |
Electric Vehicles
Front Accessories
Bucket
Hammer
Auger
XL Bucket

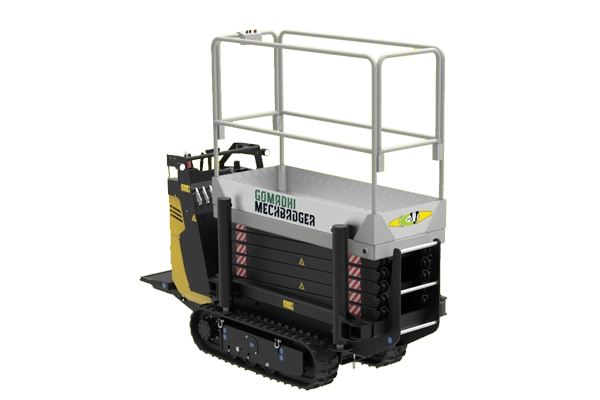

Aerial Work Platform
Electric Vehicles
Technical Specifications
| Motor | 7KW - 2600 rpm |
| Maximum Current | 175 A |
| Voltage | 48 VDC |
| Battery | 150 Ah |
| Gradeability | 70% (35°) |
| Travel Motors | 20 L/min |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 1795 Kg (614+1181) |
| Payload Capacity | 250 Kg |
| Working Height | 9200 mm |
| Speed | 4.5 Km/h |
