Shredder AS Series

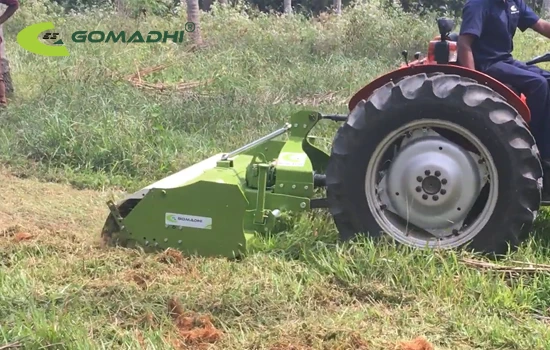

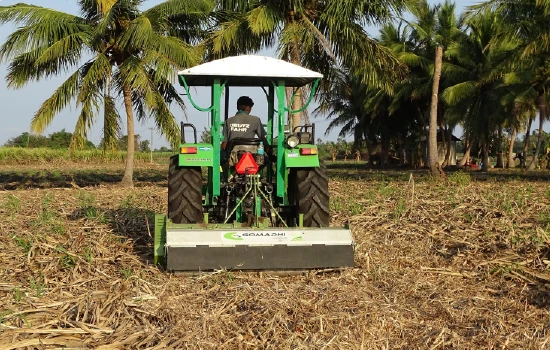

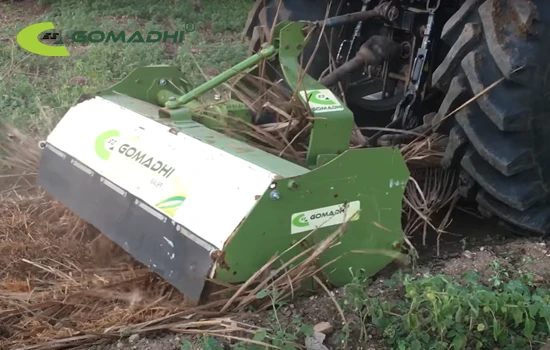

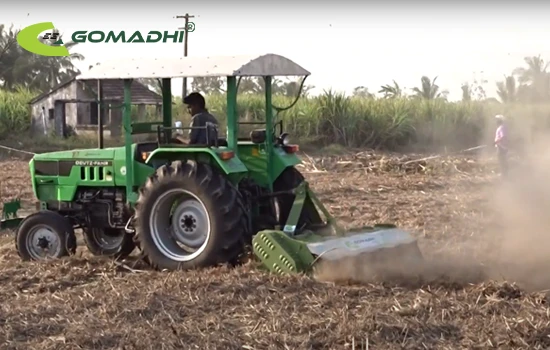

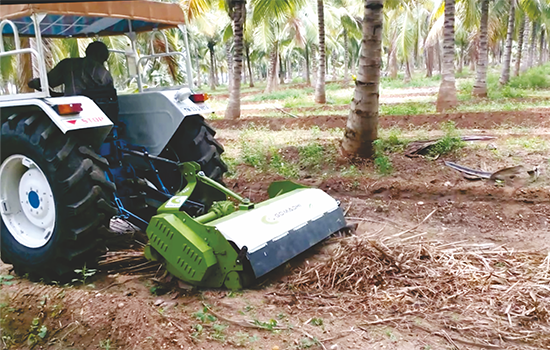

Gomadhi AS series shredder is reliable implement for shredding grass and bushes. When it is passed on the grass, clipping remains trapped inside the frame until they are cut into the pieces. Shredder returns the cut grass piece onto the yard where they quickly decompose and improving overall organic structure of the soil.  For mini-series, it requires 18-24 hp tractor with 540 PTO RPM to operate.  For Standard series, it requires 45 and above hp tractor with 540 PTO RPM to operate

Rear Trailing Board

Rotary With Hammer(Knife Optional)


Dynamically Balanced Rotor Assembly Provide a Vibration Free & Smooth Operation

Heavy Duty Plough

Toothed Belt Design Eliminates Belt & Belt Drive pulley slip page


Lower Operating Cost & Less Maintenace

Heavy Duty Gear Box

Hight Efficient Heavey Duty Gear Box

Rotary Assembly

Can be adjusted According to the type of cutting


Height adjustment ensures unifrom & Compact Shredded Layer

Side Chain Drive

Heavy Duty Frame


The ultra-strong frame is so sturdy that it can handle machine without losing strength or resistance

Side Chain Drive

Adjustable Rear Trailing Board

Shredder Series

Gallery

leafs Tractor Illustration

Application

  • Suitable for cutting Paddy, Wheat, Sugarcane trashes and Cotton twigs.
  • Suitable for cutting residue in coconut farms.
  • Suitable for grass cutting as well as cutting of small twinge in vine yards green manure and orchards.
  • Shredding directly the entire cotton plant after harvesting

Technical Specification

Model Type Dimension in mm (L X W X H) Working Width Tractor Power Side Transmission Drive No.of Blades Type of Blade No.of Belts PTO Input speed Hitching Weight
AS105 Tractor PTO Operated 1125 x 780 x 700mm
3.7 x 2.5 x 2.3 ft
1050mm 3.4ft 18-24 HP Toothed Belt 40/20 "Y"Type/Flat Hammer 2 540 RPM CAT-I 115 Kgs
AS150 1755 x 1100 x 1000mm
5.7 x 3.6 x 3.3 ft
1500mm 4.9ft 40 & Above HP 44/22 3 CAT-II 350 Kgs
AS180 2030 x 1100 x 1000mm
6.7 x 3.6 x 3.3 ft
1770mm 5.8ft 45 & Above HP 52/26 3 400 Kgs
AS210 2304 x 1100 x 1000mm
7.5 x 3.6 x 3.3 ft
2030mm 6.7ft 50 & Above HP 60/30 4 450 Kgs
