Hayrake AHR Series
The Ultra-Strong frame is so sturdy that it can handle machine without losing strength or resistance
Tyre
Super tubeless tires create smoother and cleaner raking over uneven ground and varying field conditions
The line arms thick-walled Each line arm carries three double lines
Modular Gear Box
The rotor scores on excellent quality of work in very difficult crop, great stability, hard-wearing components and no maintenance at all.
Tine
Tine, that wind around the arms in four massive spring coils offering outsanding flexbilty and longevity
Gallery
Advantage & Features
- Heavy Machine Construction
- Simple Machanism & Low Maintenance
- Easily Height Adjusting by Level Arm
- Easy Baling for Round/Square Baler
- Uniformity Raking
Application

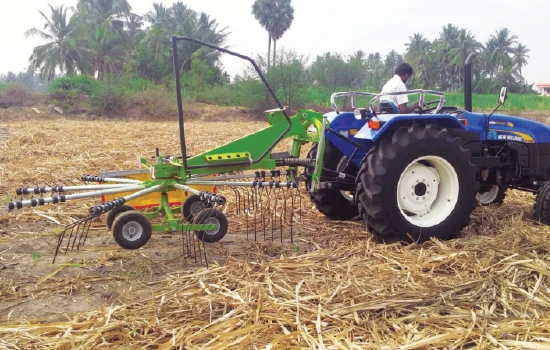

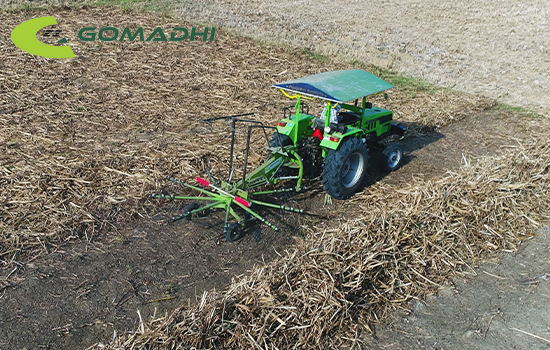

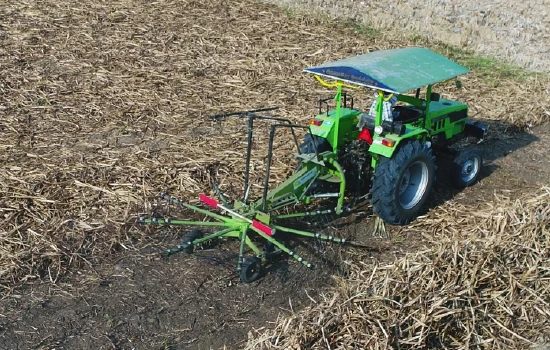

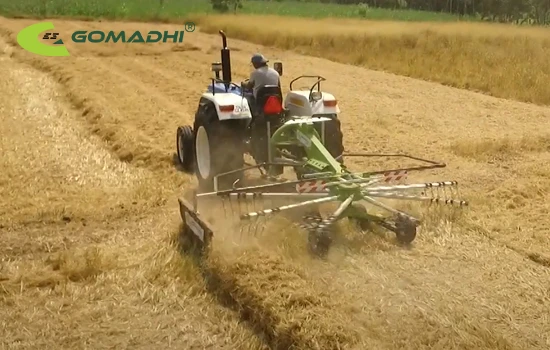

- Gomadhi Hay Rake especially designed for collecting cut hay or straw into windrows. Then collect those straw by Round or Square Baler
Technical Specification
| Model | Type | Rotar Diameter mm/ft | working width mm/ft | Tractor Power | PTO Input Speed | No. of Arms | No.of Double Tines Arm | Transport Width mm | Hitching | Tyre Size | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AHR 3593 | Tractor PTO Operated | 2900 mm 9.5 ft |
3500 mm 11.5 ft |
40 HP | 540 RPM | 9 | 3 | 1500 | CAT-II 3 Point Linkage | 15x6.00-6 | 450 kg |
