GES Super HD Series

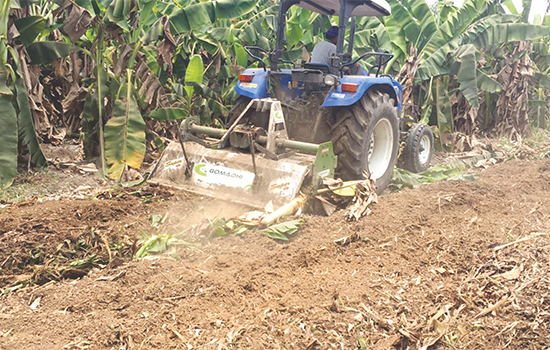

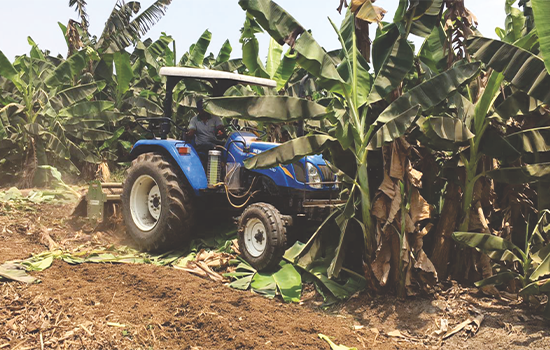

Gomadhi Super HD series rotary tiller is specially designed for shredding banana trunk and its dry leafs. It has sturdy structure ensures chopping of well-grounded crop residuals and deeper tillage. Above 60 HP tractor is required (with 0.2 km speed-Creeper gear must) with 540 PTO RPM to operate.
Advantage & Features
- Larger frame for faster tillage & heavy duty application
- Very solid and sturdily built
- Heavy duty spring loaded adjustable trailing board
- Side Transmission - Gear Drive
- Adjustable Lower Brackets & Heavy duty Mask plate assembly
- Heavy duty gear box
- Skid runners for Depth Adjustment
Technical Specification
| Model | Type | Dimension in mm(LxWxH) | Working Width | Tractor Power | No.of Flages | No.of Blades | PTO Input Speed | Side Transmission Drive | Rotar Shaft Speed | Size of Blades | Max.Working Depth | Rotor Tube Dia | Rotor Swing Dia | Hitching | Type of Blade | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HD60MSG | Tractor PTO Operated Rotary Trillers | 2020 x 1000 x 1198 6.6 x 3.3 x 3.9ft |
1640mm 5.4ft | Above 60-80HP with Creeper | 8 | 42 | 540 RPM | Gear | 222 RPM | 84x7mm | 150-200mm | 90mm | 515mm | CAT-II 3Point Linkage | "L" Type | 660 Kgs |
| HD80MSG | 2480 x 1000 x 1198 8.1 x 3.3 x 3.9ft |
2100mm 6.9ft | Above 80HP With Creeper | 10 | 54 | 730 Kgs |
