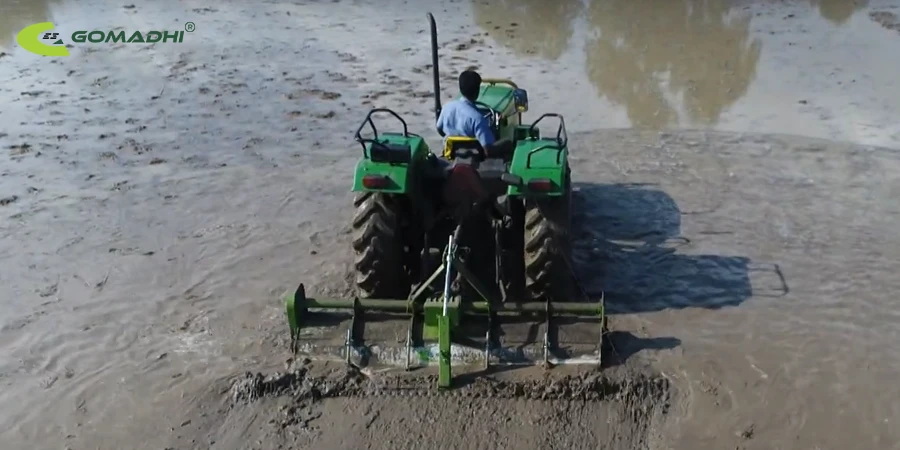

Rotary Puddler
Gomadhi Rotary Puddler are light weight machine specially designed for puddling application and also used to makes the height of the field uniform. It required 4-50 hp tractor with 540/1000 PTORPM to operate.
Rear Trailing Board
Leveling Plate
Level the height of the field in uniform
Multi Speed Gear Box
Ducone Seal
Mechanical Sealing System
Work in Wet & Dry Land with Extended Seal Life
Side Chain Drive
(Self Adjsting)
More Depth in Tillage
Reduces Load on Tractor as well as low fuel consumption
Avoid Tyre Slippage
Gallery
Advantage
- Pursuit of weight reduction, matching balance.
- Excellent economy.
- Less fuel consumption and more coverage area.
- Warping wings helps to balance the soil.
Salient Features
- Simple design construction.
- Mechanical sealing system helps to restrict the water entry in rotary hub.
- Levelling plate are oversized to level and refine the seedbed.
- Equipped with a J-type blade to give more depth in tillage and does not load the tractors due to its broader width..
Technical Specification
| Model | Type | Dimension in mm/ft (LXWXH) | Working Width in mm/ft | Tractor Power,HP | No.of Flanges | No.of Blades | PTO speed | Side Transmission Drive | RotorShaft Speed in RPM | Size of Blades in mm | Max.Working Depth in mm | Rotar Tube Dia in mm | Rotar Swing Dia in mm | Hitching | Type of Blade | Weight in Kgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RP180 | Tractor PTO Operated Rotary Trillers | 2866 x 920 x 1120 / 9.4 x 3 x 3.7 | 1808 / 6 | Above 36 | 23 | 46 | 540/1000 RPM | Chain | 312/352 | 45 x 5 | 180 | 76 | 416 | CAT-I/CAT-II 3Point Linkage | "J"Type | 340 |
| RP210 | 3194 x 920 x 1120 / 10.5 x 3 x 3.7 | 2134 / 7 | Above 40 | 27 | 54 | 360 | ||||||||||
| RP240 | 3510 x 920 x 1120 / 11.5 x 3 x 3.7 | 2440 / 8 | Above 45 | 31 | 62 | 390 | ||||||||||
| RP270 | 3848 x 920 x 1120 /12.6 x 3 x 3.7 | 2775 / 9 | Above-50 | 35 | 70 | 420 Approx |
