Banana Truck Chopper
Gallery
Advantage
- Specially designed Hexagon Protect over with Rubber Sheet in Working Area
- Height Adjustment facility in Chamber Area
- Frame assembly to avoid hanging of Pivot Drum
- Specially designed Tension Plate added on front
- Skid Pad added in front Frame assembly to avoid the wear and friction
- Input Shaft Guard added for safety precaution
- Blade assembled in input shaft by using flange and tighened by Chuck nut - 2nos 1st Chuck Nut is locked by allen Screw and 2nd one is locked by Pin
- Frame protect cover added to avoid stuckage of Banana Trunk in Chamber Area
Application

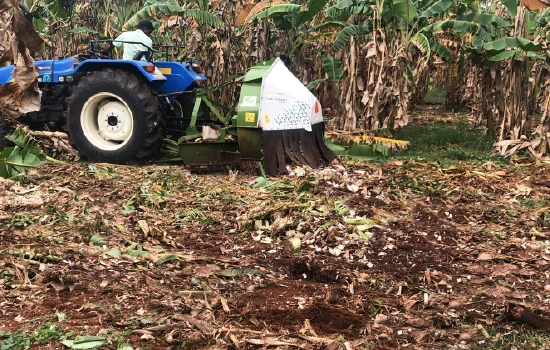

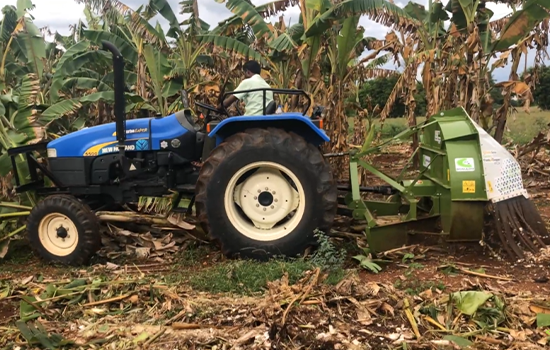

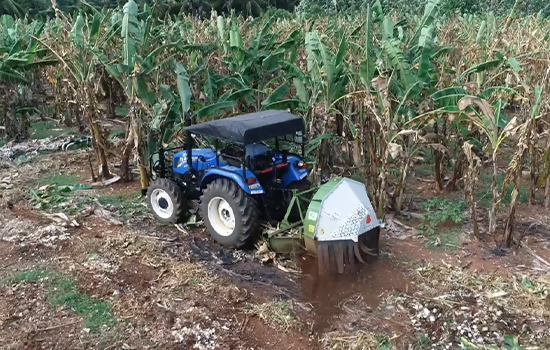

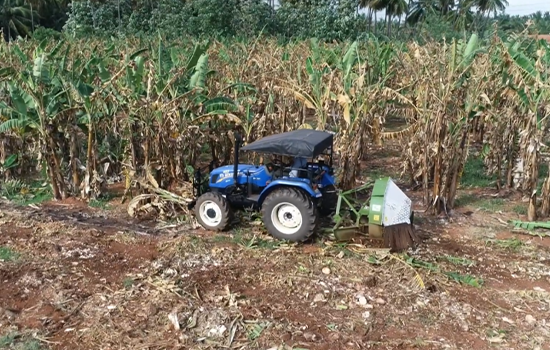

- Shredding/chopping machine is used for shredding the agricultural residue like coconut fronds, banana stem, cotton stalk etc.
Technical Specification
| Make/Model | Type | Recommended Power Source in hp |
Type of Hitch | Cutting Blade Type | Cutting Blade material | Cutting Blade Number | Cutting Blade Size in mm(LxWxT) | Overall Dimension in mm(LxWxT) | Mass in Kg |
|---|---|---|---|---|---|---|---|---|---|
| BTC 24 | Tractor Mounted pto Operated |
40 Hp and above |
CAT-II 3 point linkage |
Plain with Sharp Cutting Edge |
Spring Steel |
2 | 560 x 118 x 16mm | 1770 x 1800 x 1470mm | 390 Kgs |
