Weeder & Bund former

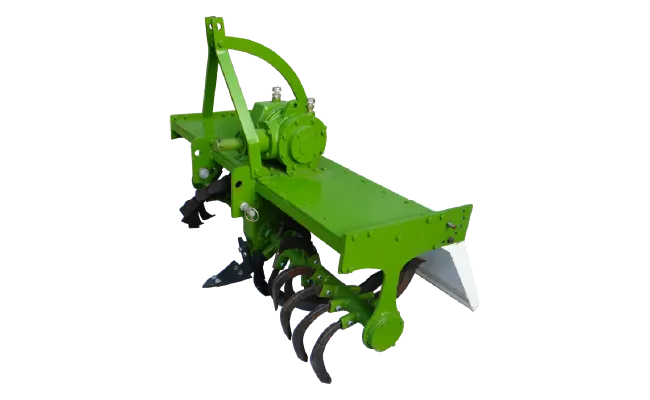

Gomadhi inter row rotary bund former & weeder is specially designed for removal of weeds & forming bunds between row crops such as sugarcane & banana. (Row spacing 5, 6 & 7 Feet) It required 18-24 HP tractor with 540 PTO RPM to operate.
Gallery
Advantage & Features
- Heavy duty gear box.
- Single speed chain drive.
- Simple mechanism & low maintenance.
- Eliminating Hoeing labour.
- Making channels for water flow.
- Eliminates chemical weed killer, thus machine is soil friendly
Technical Specification
| Model | Type | Dimension in mm(LxWxH) | Working Width | Tractor Power | No.of Blades | PTO Input speed | Side Transmission Drive | Rotar Shaft Speed | Size of Blades | Max.Working Depth | Rotor Tube Dia | Rotor Swing Dia | Hitching | Type of Blade | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WBF920 | Tractor PTO Operated | 956 x 850 x 1080mm 3.1 x 2.8 x 3.5ft |
900mm 2.9ft | 18-24 HP | 20 | 540 RPM | Chain | 218 RPM | 50X9mm | 75-100mm | 60mm | 480mm | CAT-I | "J" Type | 154 Kgs |
| WBF1024 | 1058 x 850 x 1080mm 3.5 x 2.8 x 3.5ft |
1000mm 3.3ft | 24 | 164 Kgs | |||||||||||
| WBF1232 | 1300 x 850 x1080mm 4.3 x 2.8 x 3.5ft |
1244mm 4.0ft | 28 | 184 Kgs |
