Round Baler AB Series

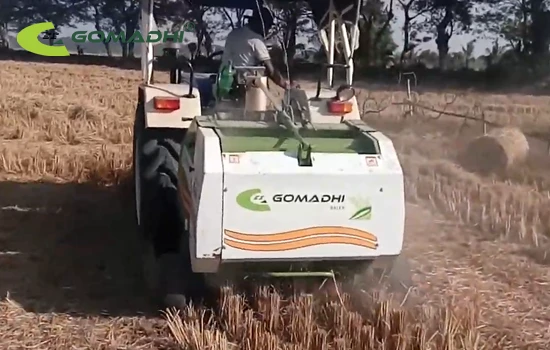

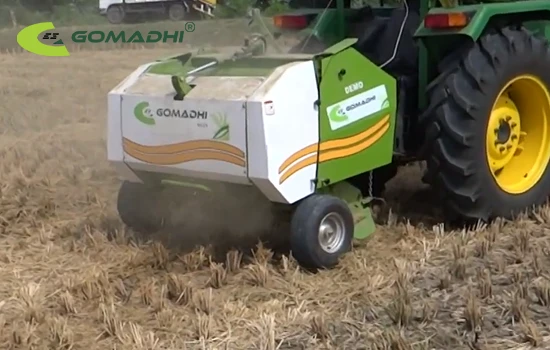

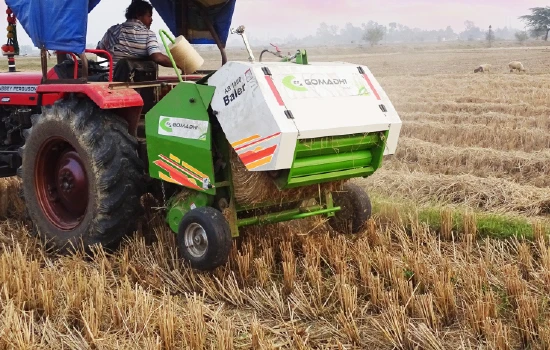

Gomadhi Ab Series is a tractor operated round baler. It picks up the cut-straw and compress into compact round bale, the compressed bales is easy to handle, transport and store. It requires 35-45 hp (Dual Clutch must) tractor with 540 PTO RPM to operate.
Gallery
Advantage
- Baler can be operated in lower-Hp tractors
- Trouble Free Binding Easy Adjustments
- Easy - to pick, store & transport
- Lubrication system with self cleaning brush
- Bale Counter
Salient Features
- Automatically operated twine-binding system.
- Automatically operated centralised lubrication system.
- Bale density can be adjusted.
- The larger tires absorb shock loads in rough terrain and improve flotation on soft ground.
- Spring-loaded bale ramp allows the bale to roll away from the baler.
- No external power supply required to operate hydraulic system.
Technical Specification
| Model | Type | Dimension in mm/feet (L X W X H) |
Pickup Width | Tractor Power | Bale Size in mm | Bale Weight | Binding Type | PTO Input speed | Hitching | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| AB 800-10 | Tractor PTO Operated | 1435 x 1250 x 1200mm 4.7 x 4.1 x 3.9 ft |
800mm 2.6ft |
35-45 HP (DualClutchMust) |
D-500x W-700 mm | 15-20 kg | Jute Twine | 540 RPM | CAT-II 3 Point Linkage |
500 Kgs |
| AB 800-12 | 1435 x 1450 x 1250mm 4.7 x 4.7 x 4.1 ft |
800mm 2.6ft |
D-610 x W-700 mm | 20-25 kg | 515 Kgs | |||||
| AB1000 | 1550 x 1450 x 1250mm 5 x 4.7 x 4.1 ft |
1060mm 3.5ft | D-610 x W-930 mm | 25-30 kg | 625 Kgs | |||||
| AB1050-10 | 1740 x 1450 x 1250mm 5.7 x 4.7 x 4.1 ft |
1175mm 3.8ft | D-500 x W-1050mm | 20-25 kg | 610 Kgs | |||||
| AB1050-12 | 1740 x 1450 x 1250mm 5.7 x 4.7 x 4.1 ft |
1175mm 3.8ft | D-610 x W-1050mm | 25-35 kg | 670 Kgs |
