Paddy Transplanter

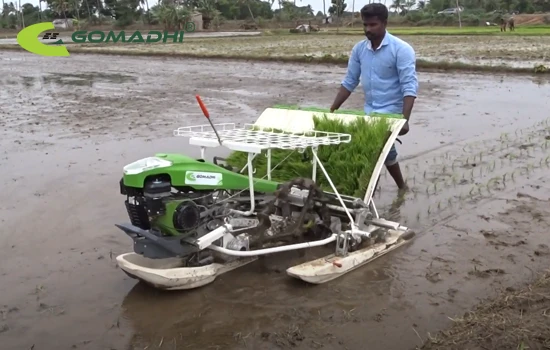

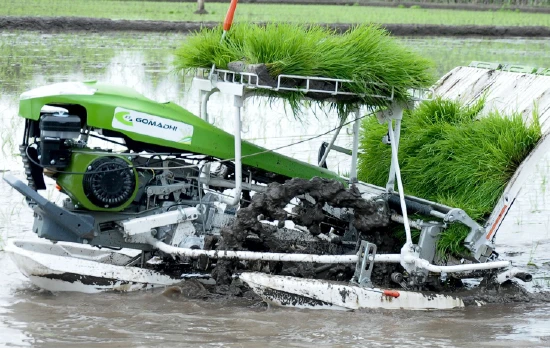

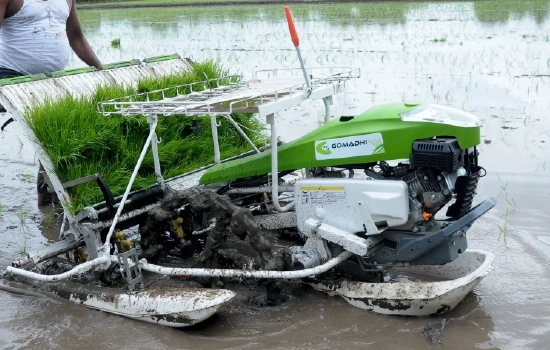

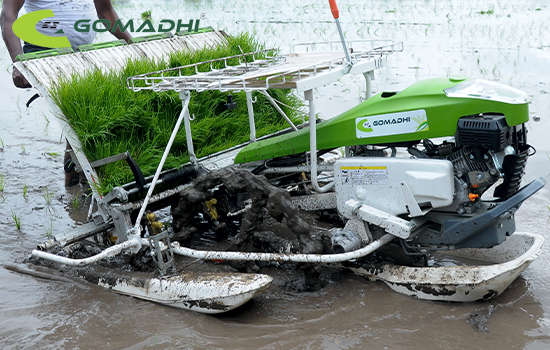

WBT-4R Gomadhi Rice Transplanter WBT-4R is a selfpropelled, Walk-behind, compact, Light in weight, robustly built paddy transplanter. The Transplanter Is matted with a 4.5 hp Petrol Engine and durable Shaft Drive system. It is equipped with 3 speed transmission for 4 rows transplanting at one time. The hydraulic auto levelling polypropylene float system allows for uniform planting of paddy seedlings without sinking and smooth movement in soft fields.It is easily manoeuvrable with the help of turn clutches and thus reduces operator fatigue.
Gallery
Advantage
- Positive displacement of seeding in soil
- Transplanting seeding uniformly without damaging them
- Productivity is Increase
- Overall Growth of Paddy Crops Increase
- Soil Health Improves.
- Solving Health Back Problems of Farmers
- Reduce Labour Charges
- Able to be used in different kinds of soil
- Improve the soil health by eliminating puddle.
- It is very cost-effective
Salient Features
- Durable Petrol Engine
- Easy Handling
- Shaft Drive System
- 4 - Row Transplanter
Technical Specification
| Model | Type | Dimension (L X W X H) in mm | Engine | Fuel Efficiency (l/hr) | Wheel Adjustment | Type | Travelling Wheel | Planting Portion | Planting Speed | Operation efficiency | Travelling Speed on Road | Seeding condition | Weight (Kgs) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Total Displacement (L(CC)) | Applicable Fuel | Tank Capacity (L) | Ignition System | Starting System | Type | Rated Power | External Diameter(mm) | No.of Shifiting Position | No.of Planting rows | Distance between rows(cm) | Hill Space(cm) | Number of hills per 3.3m2 | Planting Depth(cm) | Number of Seeding/Hill | Seeding Type | Seeding height(cm) | Number of leaves | ||||||||||
| WBT-4R | Walk-Behind Type | 2140 x 1630 x 910mm 7 x 5.3 x 3 ft |
PX160 | 0.163(163) | Unleaded gasoline for automobiles | 4.0 | Contact less magneto | Hand Recoil Starter | Air Cooled,4 Stroke,OHV Gasoline Engine | 3.2Kw/3000 RPM | 2.0-4.7 | Hydralic System(up/down) | Rubber logWheel with thick Rim | 660 | Forward 2(planting)/Reverse | 4 | 30 | *12,14,16,18,21 | *90,80,70,60,50 | 0.4-4.0 {5Positions} |
2-8 (Adjustable) |
1-2.77 Km/hr | 0.4-0.58 | 2.5-5.97 Km/hr | Mat/Tray Type | 10-25 | 2.0-4.5 | 170 |
