Aqua Series
Gomadhi Aqua series rotary tiller is specially developed for wetland, light and medium soil. Its designed to be light in weight but sturdy by structure which makes this series most suitable for wetlands. Its work very efficient and ensure saving time and fuel.
It required 30 - 60 HP tractor with 540 or 1000 PTO RPM to operate.

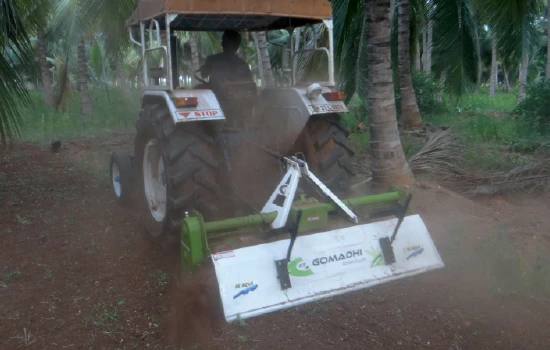

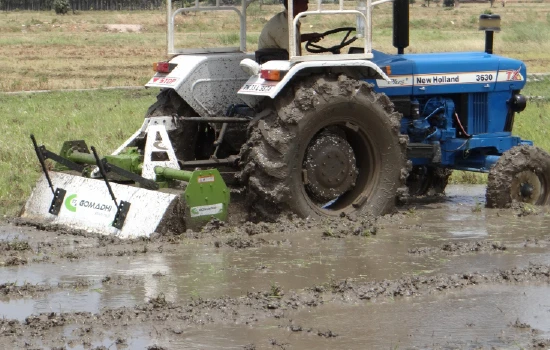

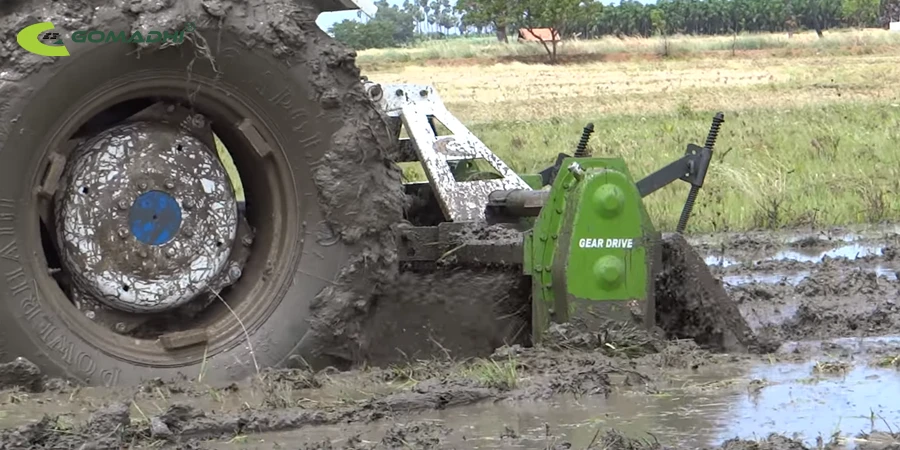

Gallery
Advantage & Features
- Available in sizes 4, 5 and 6 Feet
- Solid construction
- Heavy duty spring loaded adjustable trailing board
- Side - Gear Drive
- Adjustable Lower Brackets
- Adjustable depth skid
- Simple mechanism & low maintenance.
- Heavy duty gear box(Single / Multi Speed) optional
- Can be used in Both Wet land and Dry Land Operation (Light & Medium Soil)
Application
- It can be used in Both Wet land and Dry Land Operation (Light & Medium Soil)
Technical Specification
| Model | Type | Dimension in mm (L X W X H) | Working Width | Tractor Power | No.of Flanges | No.of Blades | PTO Input Speed | Side Transmission Drive | Rotor Shaft Speed | Size of Blades | Max.Working Depth | Rotar Tube Dia | Rotar Swing Dia | Hitching | Type of Blade | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AE15MSG | Tractor PTO Operated Rotary Trillers | 1270 x 760 x 955 4.2 x 2.5 x 3.2ft |
990 mm 3.2 ft |
30-40 HP | 4 | 24 | 540/1000 RPM | Gear | 234/264 RPM | 84X7mm | 100-125mm | 90mm | 455mm | CAT-II 3Point Linkage | "L"Type | 323 Kgs |
| AE20MSG | 1510 x 760 x 955 4.9 x 2.5 x 3.2ft |
1270mm 4.2ft |
35-45 HP | 5 | 30 | 344 Kgs | ||||||||||
| AE40MSG | 1740 x 760 x 955 5.7 x 2.5 x 3.2ft |
1500mm 4.9ft |
40-50 HP | 6 | 36 | 371 Kgs | ||||||||||
| AE60MSG | 1970 x 760 x 955 6.5 x 2.5 x 3.2ft |
1730mm 5.7ft |
50-60 HP | 7 | 42 | 398 Kgs |
