GES & HD Series

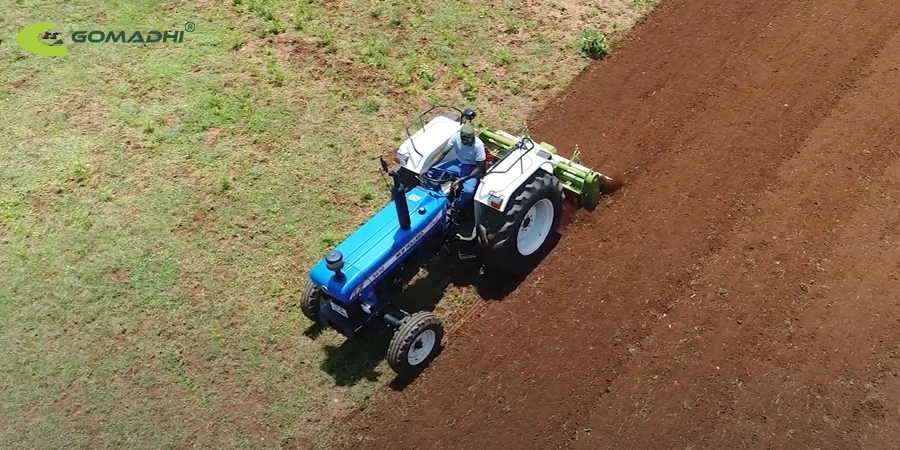

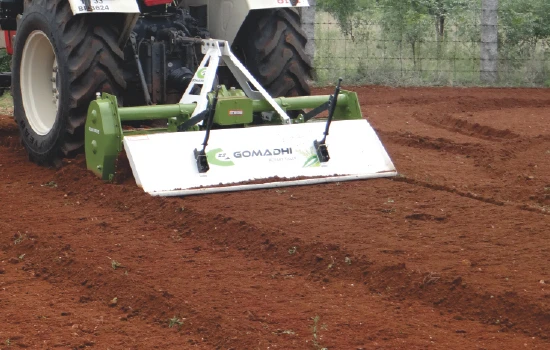

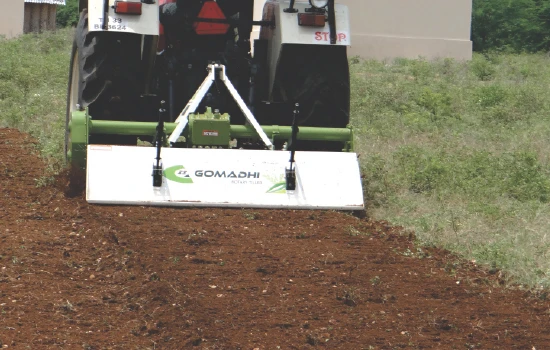

Gomadhi GES Regular& HD series rotary tiller is specially designed to work efficiently in all type of crop & soil to remove weeds, mixes manure/fertilizer into soil, chops stubbles, breaks clods and levels the field. It required 30-85 HP tractor with 540 or 1000 PTO RPM to operate.
Gallery
Advantage & Features
- Available in sizes 4, 5, 6 & 7 Feet
- Solid construction
- Heavy duty spring loaded adjustable trailing board
- Side - (Chain and Gear Drive) optional
- Adjustable Lower Brackets
- Adjustable depth skid
- Simple mechanism & low maintenance.
- Heavy duty gear box (Single / Multi Speed) optional
Application
- Most suitable for hard soil and dry land applications.
- Stubbles and roots are completely cropped and mixed with the soil ensuring better mulching.
Technical Specification
| Model | Type | Dimension in mm (L X W X H) | Working Width | Tractor Power | No.of Flanges | No.of Blades | PTO input speed | side Transmission Drive | Rotor Shaft Speed | Size of Blades | Max.Working Depth | Rotar tube Dia | Rotar swing Dia | Hitching | Type of Blade | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GES20C | Tractor PTO Operated Rotary Trillers | 1526 x 780 x 1090mm 5 x 2.5 x 3.5ft |
1270mm 4.2 ft | 35-45 HP | 5 | 30 | 540 RPM | Chain | 216 RPM | 84x7mm | 100-125mm | 90mm | 455mm | CAT-II 3Point Linkage | "L"Type | 350 Kgs |
| GES20MSC | 540/1000 RPM | 227/256 RPM | 361 Kgs | |||||||||||||
| GES40C | 1756 x 780 x 1090mm 5.8 x 2.5 x 3.5ft |
1500mm 4.9ft | 40-50 HP | 6 | 36 | 540 RPM | 216 RPM | 378 Kgs | ||||||||
| GES40MSC | 540/1000 RPM | 227/256 RPM | 389 Kgs | |||||||||||||
| GES60C | 1986 x 780 x 1090mm 5.5 x 2.5 x 3.5ft |
1730mm 5.6ft | 45-55 HP | 7 | 42 | 540 RPM | 216 RPM | 397 Kgs | ||||||||
| GES60MSC | 540/1000 RPM | 227/256 RPM | 417 Kgs | |||||||||||||
| GES20G | 1526 x 780 x 1090mm 5 x 2.5 x 3.5ft |
1270mm 4.2ft | 35-45 HP | 5 | 30 | 540 RPM | Gear | 216 RPM | 363 Kgs | |||||||
| GES20MSG | 540/1000 RPM | 227/256 RPM | 374 Kgs | |||||||||||||
| GES40G | 1756 x 780 x 1090mm 5.8 x 2.5 x 3.5ft |
1500mm 4.9ft | 40-50 HP | 6 | 36 | 540 RPM | 216 RPM | 391 Kgs | ||||||||
| GES40MSG | 540/1000 RPM | 227/256 RPM | 402 Kgs | |||||||||||||
| GES60G | 1986 x 780 x 1090mm 6.5 x 2.5 x 3.5ft |
1730mm 5.7ft | 50-60 HP | 7 | 42 | 540 RPM | 216 RPM | 419 Kgs | ||||||||
| GES60MSG | 540/1000 RPM | 227/256 RPM | 430 Kgs | |||||||||||||
| GES70MSG | 2216 x 780 x 1090mm 7.3 x 2.5 x 3.5ft |
1960mm 6.4ft | 60-70 HP | 8 | 48 | 540/1000 RPM | 216 RPM | 458 Kgs | ||||||||
| GES80MSG | 2246 x 780 x 1090mm 8 x 2.5 x 3.5ft |
2190mm 7.2ft | 70-85 HP | 9 | 54 | 540/1000 RPM | 227/256 RPM | 486 Kgs | ||||||||
| GES40MSC R-series |
1756 x 780 x 1090mm 5.8 x 2.5 x 3.5ft |
1500mm 4.9ft | 42-50 HP | 6 | 36 | 540/1000 RPM | chain | 227/256 RPM | 399 Kgs | |||||||
| GES60MSC R-series |
1986 x 780 x 1090mm 6.5 x 2.5 x 3.5ft |
1730mm 5.7ft | 50-60 HP | 7 | 42 | 427 Kgs | ||||||||||
| GES40MSC H-series |
1756 x 780 x 1115mm 5.8 x 2.5 x 3.6ft |
1500mm 4.9ft | 45-50 HP | 6 | 36 | 540/1000 RPM | 227/256 RPM | 150-175mm | 475mm | 429 Kgs | ||||||
| GES60MSC H-series |
1756 x 780 x 1115mm 6.5 x 2.5 x 3.6ft |
1730mm 5.7ft | 50-60 HP | 7 | 42 | 457 Kgs |
