K series

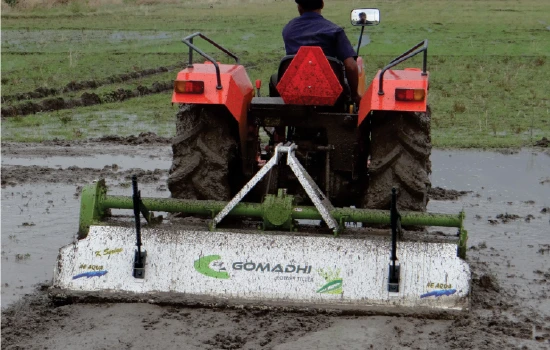

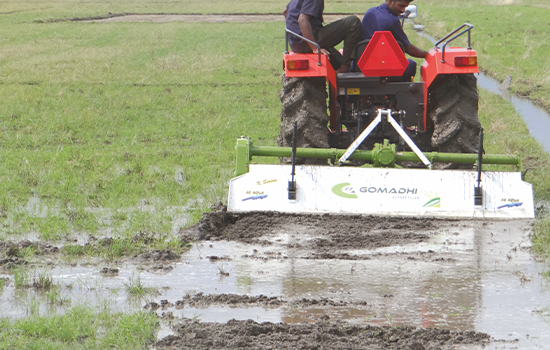

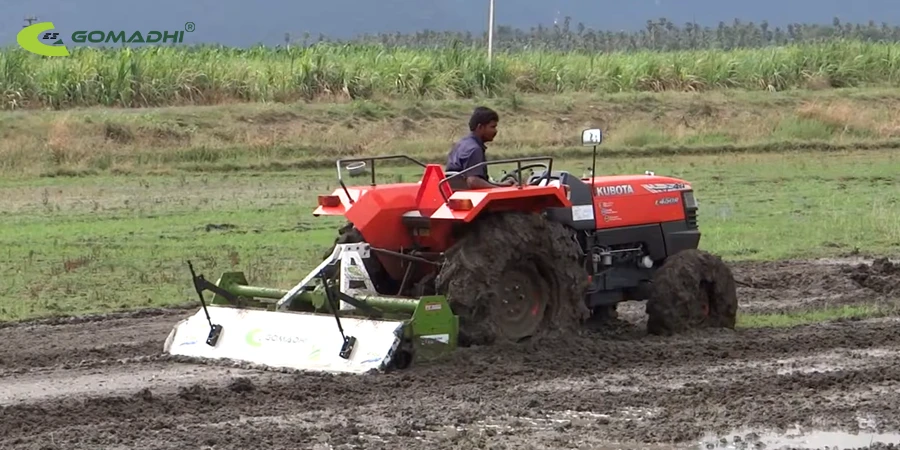

Gomadhi K Series paddy tiller are light weight machine especially designed for puddling application to prepare fine leveled seedbed.
It required 45-50 HP tractor with 540/1000 PTO RPM to operate.
Gallery
Advantage & Features
- Working width of 1980 mm. which gives the advantage of more coverage area.
- Less fuel consumption and more coverage area.
- Has a multi-speed option of 540/1000 PTO RPM. Technology, which in turn is more efficient and light in weight.
- It can be used with lower HP tractors (45 / 50 HP Tractors)
- Equipped with a J - TYPE blade to give more depth in tillage. Does not over load the tractor's due to its broader width.
- It extends almost a feet on the either side of the tractor's rear wheel, due to which the tyre marks of the tractor's are covered during wet land operation.
- Can be used for both dry and wet land. / Eliminates the use of gauge wheel.
Technical Specification
| Model | Type | Dimension in mm (L X W X H) | Working Width | Tractor Power | No. of Flanges | No.of Blades | PTO Input Speed | Side Transmission Drive | Rotor Shaft Speed | Size of Blades | Max. Working Depth | Rotor Tube Dia | Rotar Swing Dia | Hitching | Types of Blade | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AEK60MSG | Tractor PTO Operated Rotary Tillers | 2150 x 800 x 1050 7 x 2.6 x 3.4 ft |
1780mm 5.8 ft |
45-50 HP | 10 | 36 | 540/1000 RPM | Gear | 234/264 RPM | 70x8mm | 200-250mm | 90mm | 488mm | CAT-II 3Point Linkage | "J" Type | 380 Kgs |
| AEK70MSG | 2350 x 800 x 1050 7.7 x 2.6 x 3.4ft |
1980mm 6.5 ft |
45-50 HP | 11 | 40 | 414 Kgs |
